Adapter board from 'PC' DE9 connector to 4x SMA.

Designed using HorizonEDA.

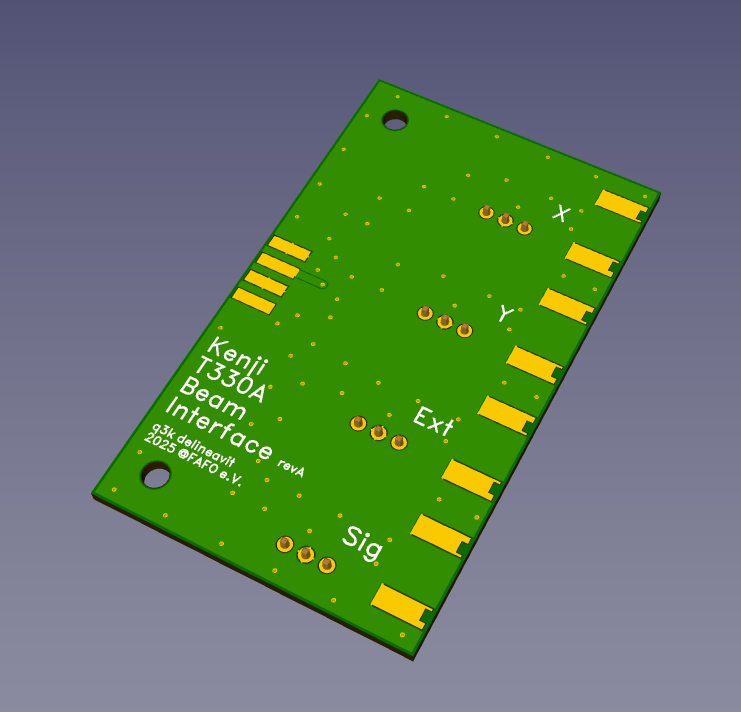

screenshot of board in HorizonEDA
