succbone: Update panel drawings #18

Merged
hugo merged 1 commit from new-drawings into main 2024-11-15 22:54:21 +00:00
Owner
  • Add MODBUS components
  • Add network topology overview which shows addresses

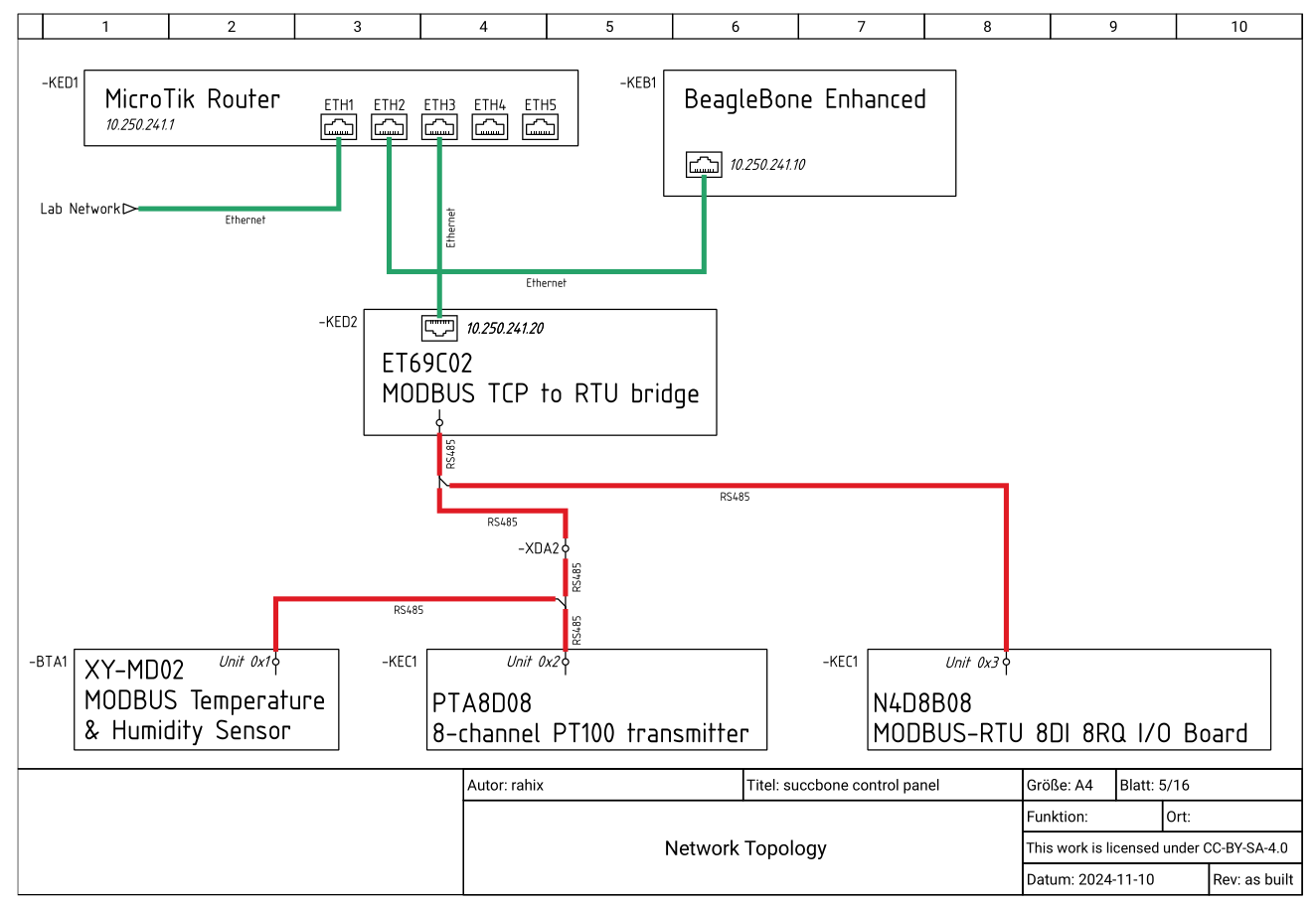

Here's the network overview for reference:

- Add MODBUS components - Add network topology overview which shows addresses Here's the network overview for reference: <img width="993" alt="image" src="/attachments/01b2ec39-6687-41ca-90f5-660ddedba529">
rahix added 1 commit 2024-11-10 08:22:23 +00:00
succbone: Update panel drawings
All checks were successful
/ test (push) Successful in 10s
/ test (pull_request) Successful in 10s
458d577f5d
- Add MODBUS components
- Add network topology overview which shows addresses
rahix added the
succbone
label 2024-11-10 08:22:40 +00:00
q3k was assigned by rahix 2024-11-10 08:22:49 +00:00
hugo was assigned by rahix 2024-11-10 08:22:50 +00:00
Author
Owner

Ping :)

Ping :)
Owner

Cannot really verify the labels, but network topology and relay board wiring looks good to me.

Cannot really verify the labels, but network topology and relay board wiring looks good to me.
Owner
  1. MikroTik, not MicroTik
  2. If you want to mark down the model number, it's an RB450G
  3. Mark the subnet sizes in addresses with CIDR notation if possible (ie. 10.250.241.10/24 ). They're all /24.
1. MikroTik, not MicroTik 2. If you want to mark down the model number, it's an RB450G 3. Mark the subnet sizes in addresses with CIDR notation if possible (ie. 10.250.241.10/24 ). They're all /24.
rahix force-pushed new-drawings from 458d577f5d to 4e271a01a9 2024-11-13 14:08:14 +00:00 Compare
Author
Owner

@q3k done.

@q3k done.
hugo approved these changes 2024-11-15 22:54:17 +00:00
hugo merged commit 4e271a01a9 into main 2024-11-15 22:54:21 +00:00
rahix deleted branch new-drawings 2024-11-15 22:54:34 +00:00
