succbone: Add new mount #16

Merged
q3k merged 1 commit from succbone-mount-v2 into main 2024-11-09 22:21:46 +00:00
Conversation 1 Commits 1 Files changed 2 +5 -2
rahix commented 2024-11-01 16:43:06 +00:00
Owner
Copy link

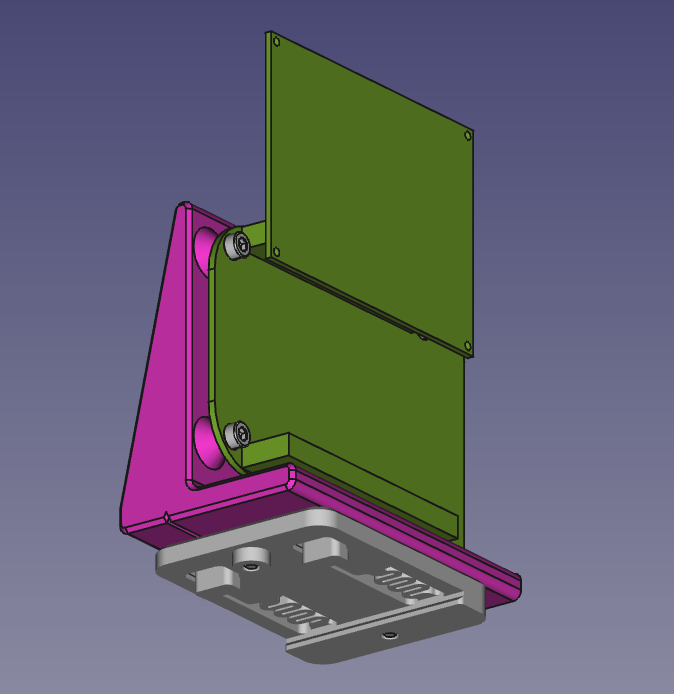

This mount is a new iteration with the following improvements:

  • 25% less DIN rail space required. This allows installing 25% more Modbus-based technology!
  • Designed for a clip that can be unlatched more easily.
  • Fixed the BeagleBone hole pattern to match reality (why BeagleBone, why D:)

Picture tax:


Currently printing the design - will install it when I next visit the space.

This mount is a new iteration with the following improvements: - 25% less DIN rail space required. This allows installing 25% more Modbus-based technology! - Designed for a clip that can be unlatched more easily. - Fixed the BeagleBone hole pattern to match reality (why BeagleBone, why D:) Picture tax: <img width="506" alt="image" src="/attachments/bd9ac495-68e1-4d34-8236-9a68f25c3084"> --- Currently printing the design - will install it when I next visit the space.
34 KiB
rahix added the
succbone
 label 2024-11-01 16:43:06 +00:00
q3k was assigned by rahix 2024-11-01 16:43:06 +00:00
rahix added 1 commit 2024-11-01 16:43:07 +00:00
succbone: Add new mount
All checks were successful
/ test (push) Successful in 12s
Details
/ test (pull_request) Successful in 10s
Details
9aa4ec3397
This mount is a new iteration with the following improvements:

- 25% less DIN rail space required.  This allows installing 25% more
  Modbus-based technology!
- Designed for a clip that can be unlatched more easily.
- Fixed the BeagleBone hole pattern to match reality (why BeagleBone,
  why D:)
hugo self-assigned this 2024-11-09 22:10:40 +00:00
hugo commented 2024-11-09 22:11:10 +00:00
Owner
Copy link

Rahix says it's ok

Rahix says it's ok
q3k approved these changes 2024-11-09 22:21:40 +00:00
q3k merged commit 52231a9e9c into main 2024-11-09 22:21:46 +00:00
