Developer Guidance

This site provides information that is useful for developing the OpenFlexure Microscope.

Viewing and Modifying These Docs Locally

If you want to view these documents in your machine (very useful when editing them). You will need to serve the apidocs directory. Navigate to the apidocs directory and run python -m http.server.

All developer guidance documentation is written in markdown and then displayed with Docsify. More information on Docsify can be found at https://docsify.js.org.

Installation and set up

To set up a development environment you will need Python 3.11 and the static files for the web application.

Installation and set up on a Raspberry Pi

The OpenFlexure Raspberry Pi OS image comes with Python 3.11 already installed. We do not recommend trying to develop on the standard Raspberry Pi OS image.

• To activate the microscope virtual environment run ofm activate
• Navigate to the Openflexure repository with cd /var/openflexure/application/openflexure-microscope-server

The Pi should already come with the static files for the web application.

Installation and set up on other platforms

You should install Python 3.11. If you have a different version of python we recommend using UV to set up a Python 3.11 virtual environment.

You can check your Python version by running py --version or python --version in any terminal. Your Python version should be >= 3.11.0.

• Clone the source code: git clone https://gitlab.com/openflexure/openflexure-microscope-server.git
• Enter the directory cd openflexure-microscope-server
• Create the virtual environment, for example with python -m venv .venv (or with uv venv --python 3.11 if using uv)
• Activate your virtual environment with source .venv/bin/activate (on Linux) or .venv\Scripts\activate.bat (on Windows CMD) or .venv\Scripts\activate (on Windows Powershell)

Note: If you activate the venv in a CMD terminal in VSCode on Windows, the venv will not visually show as activated until you open a new powershell window.

• Install the application pip install -e .[dev] (or uv pip install -e .[dev] if you are using UV)
• Run python pull_webapp.py to get the latest static files for the web application.

Full video walkthroughs of the software installation process are available below:

• Windows Walkthrough
• Linux Walkthrough

If you are using Windows and you cannot activate your virtual environment from powershell, you probably need to change the execution policy. The official Microsoft docs have the right command in example #1: https://learn.microsoft.com/en-us/powershell/module/microsoft.powershell.security/set-executionpolicy?view=powershell-7.5#example-1-set-an-execution-policy.

Running the server

There are two types of server available to run:

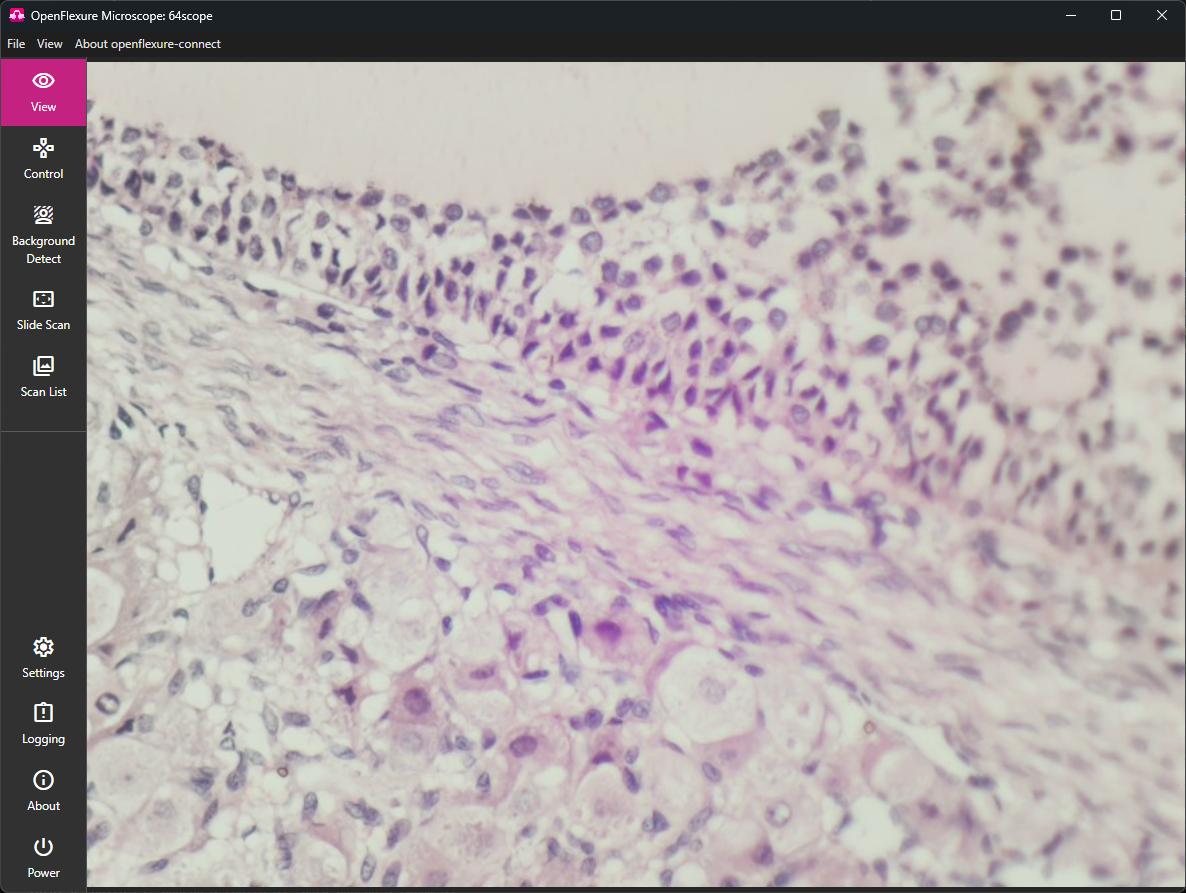

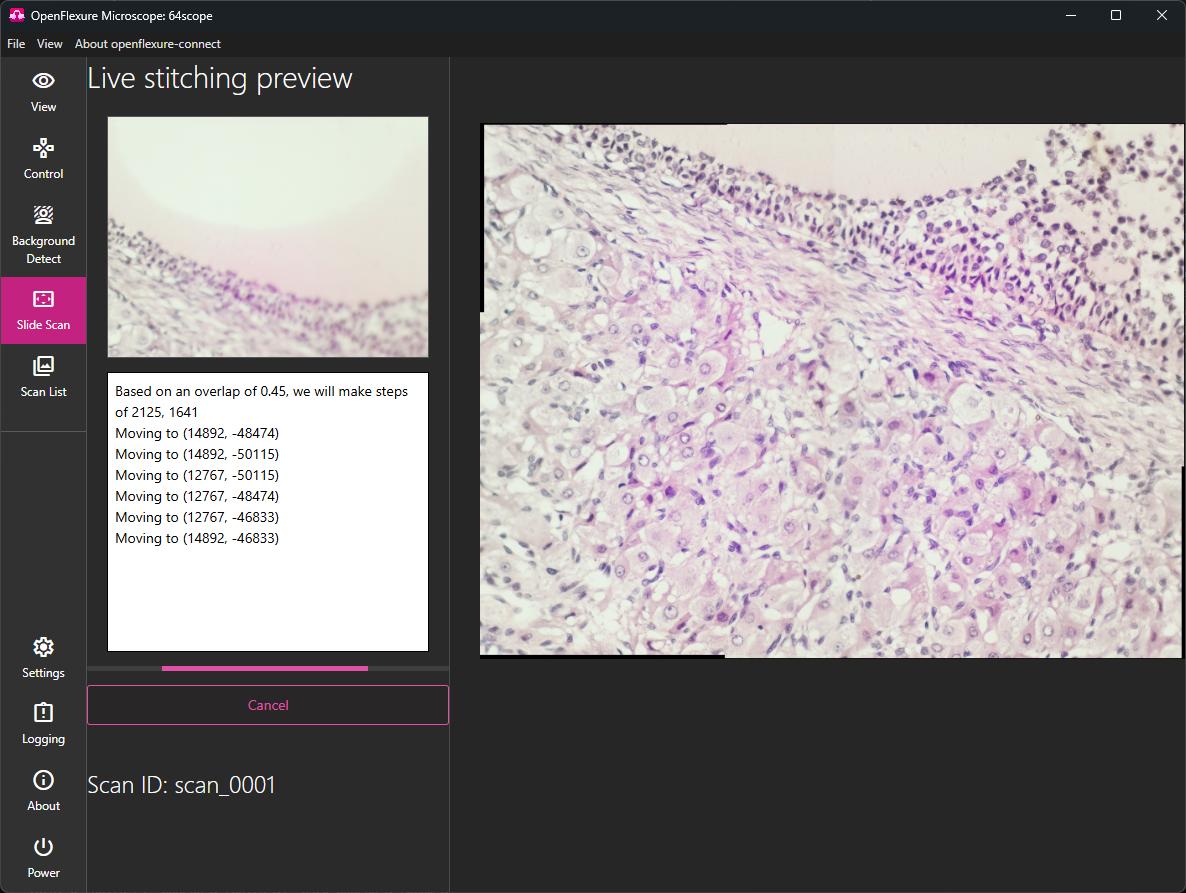

• A live OpenFlexure Microscope Server, that runs on a Raspberry Pi within your OpenFlexure Microscope. This server processes real images from the microscope's camera.

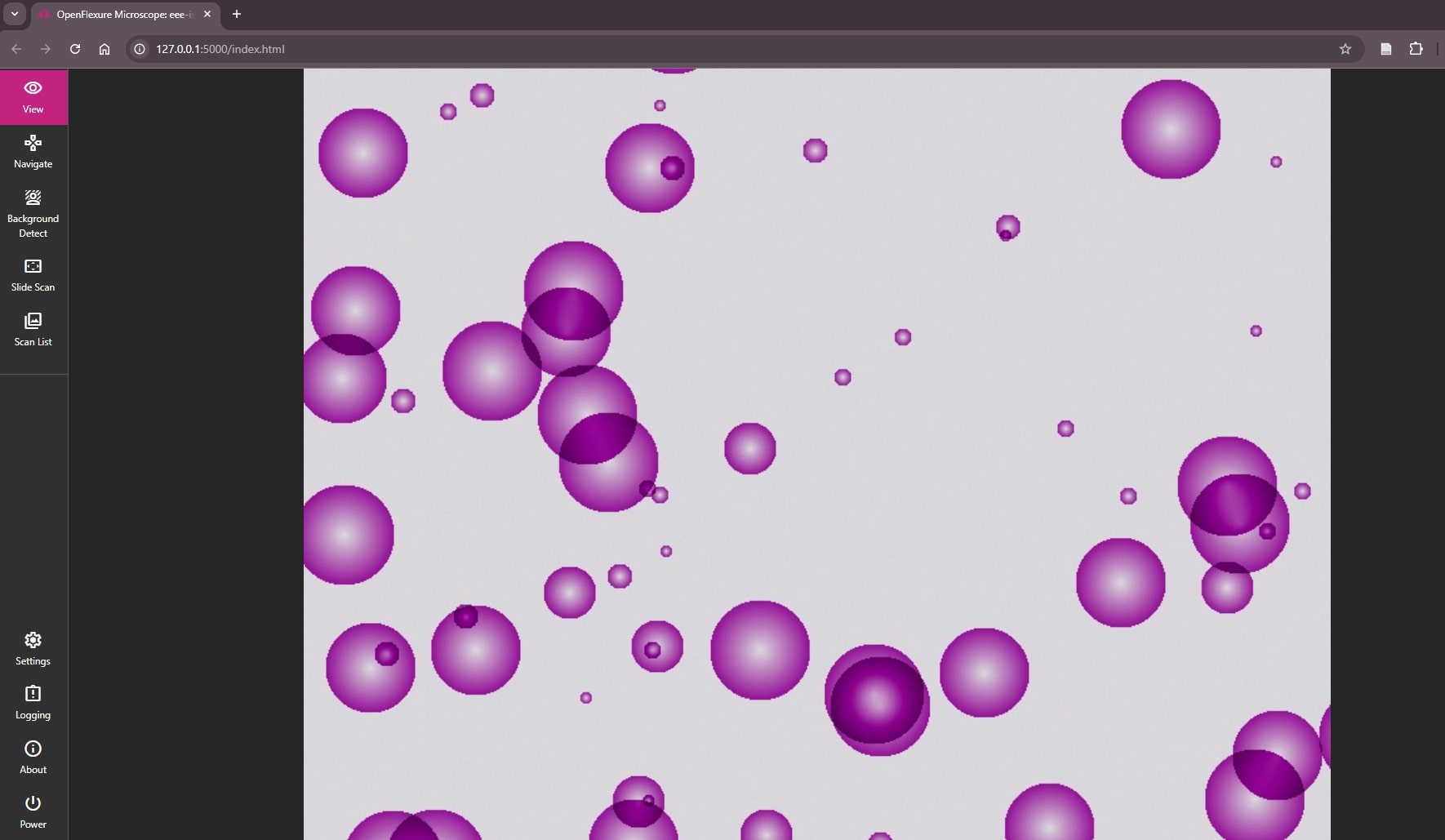

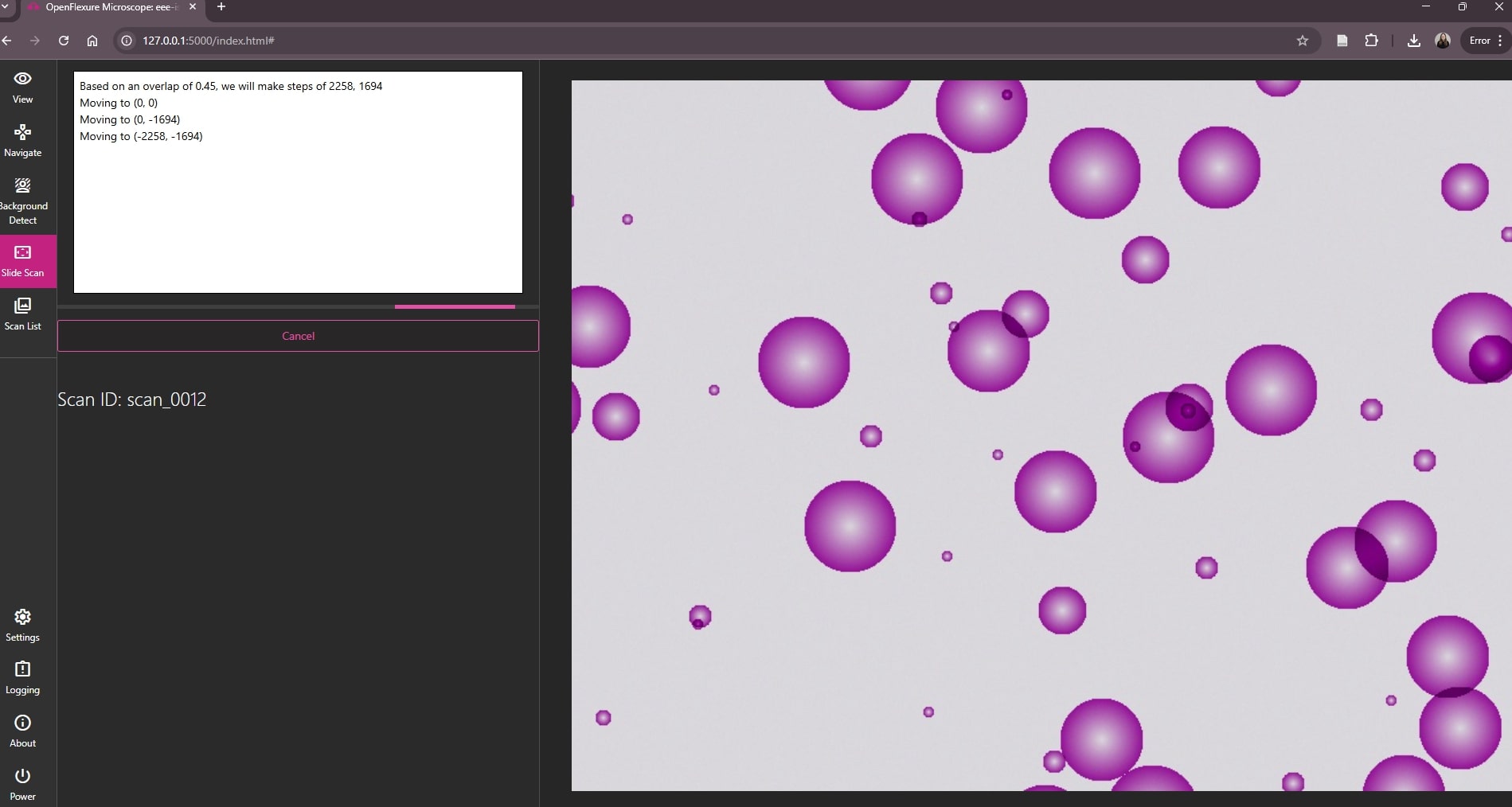

• A Simulation Server, which replicates the software functionality of the live server, but instead runs on your computer. Instead of receiving a live feed from a camera, the server 'scans' simulated data from a simulated camera.

Running the server on a Raspberry Pi

You can manage the server with the ofm command, using ofm start, ofm stop, and ofm restart to do the respective actions. Often, stopping the server and running it manually will make errors easier to spot. To do this, run:

ofm stop
cd /var/openflexure
sudo -u openflexure-ws application/openflexure-microscope-server/.venv/bin/openflexure-microscope-server --fallback -c settings/ofm_config.json --host 0.0.0.0 --port 5000

Running the simulation server on other platforms

To start the simulation server:

• Ensure all steps of the installation for your platform of choice are complete.
• Activate the virtual environment that was set up during installation
• Run the following command:

openflexure-microscope-server --fallback -c ./ofm_config_simulation.json

• Open the address displayed in the terminal in any browser.
• To close the simulation server, return to the terminal and press ctrl + c.

Note: If you are using Windows, we advise running this command in PowerShell. If it doesn't work, this might be a permission issue on managed machines, in which case try executing the command in a CMD terminal.

Note: If you receive an error saying that port 5000 is already in use, you can specify a different port to run the simulation on using --port:

openflexure-microscope-server --fallback --port 8081 -c ./ofm_config_simulation.json

A full video walkthrough of running the simulation server is available on our YouTube Channel.

You can find more information on using the simulation server in the Simulation Guide.

General development overview

Please first read our project contributions guide

• We recommend all development is done on a branch.
• If you are editing the web app, please see our see the README in the webapp directory.
• If you want to try a branch with webapp changes (that are already pushed to GitLab with a passing pipeline), but don't want to compile the javascript, then run python pull_webapp.py -b <branch_name> to get the artifacts from the GitLab CI.

For development on a Raspberry Pi we recommend VSCode Remote session from another computer. This allows you to use your usual developer environment to write code, but everything runs on the Raspberry Pi with real hardware. Note that the repository is cloned by default over https, so you will probably need to change the "remote" URL to your fork of the repository, or to SSH, before you're able to push changes.

Adding functionality

The microscope comprises a number of Thing instances, which provide actions and properties to implement hardware control and software features. These may be imported from any Python module, using ofm_config.json. See the LabThings-FastAPI documentation for how to create a Thing.

All core functionality hardware control functionality is within Thing classes. Even the standard camera and stage classes are each a Thing. This means it is possible to use a different camera or stage by sub-classing the BaseCamera or BaseStage and editing the configuration file.
