OpenFlexure Microscope Software

This is the v3 development branch

We are no longer actively developing v2, but v3 is not yet released. v3 is not yet stable enough for wider public release. Development snapshots are released from time to time. If you want to use a development snapshot before we do a wider alpha release the best thing to do is get in contact on the forum. If you want to look at the code for v2 you should look at the master branch.

The "server" is the main component of the OpenFlexure Microscope's software. It is responsible for controlling microscope hardware, data management, and allowing it to be controlled locally and over a network. This repository includes the graphical interface, which is implemented as a web application served from the root of the Python web server. The simplest way to use it is via OpenFlexure eV, which should find your microscope on the network, and display the interface. The microscope's interface can also be accessed at http://microscope.local:5000/ in a web browser, assuming the hostname of your microscope is microscope.

This software runs on LabThings-FastAPI, which creates an HTTP server using FastAPI (which in turn relies on Starlette and pydantic).

Getting started

A general user-guide on setting up your microscope can be found here on our website. This includes basic installation instructions suitable for most users. The simplest way to set up a microscope is to download the pre-built Raspberry Pi SD card image, which has this server already installed, along with all of its dependencies. There are instructions on how to use the microscope once you have installed the software, either from OpenFlexure Connect, or through a web browser. The web server starts on port 5000 by default, and the microscope SD image uses the hostname "microscope" so you can usually access the web interface at http://microscope.local:5000/.

A user guide and developer documentation for v2 of the server can be found on ReadTheDocs, including some installation notes, a link to the HTTP API reference, and guidance for developing extensions. More information is also available in the handbook, and in the "development instructions" below.

Running directly

The Python package provides a command ofm-microscope-server that runs the server. This is what is used by systemd to run the service. You will need to provide some command-line arguments, see the output of --help for an up to date list. See /etc/systemd/system/openflexure-microscope-server.service for the command line used to run the server by default on the Raspberry Pi. In general, you are likely to want to specify a configuration file with -c, a host (--host 0.0.0.0 to serve on all addresses) and a port (--port 5000). The --fallback option will allow the server to start even if the hardware specified in the configuration file can't load. This serves an error page, rather than have the server fail. In the future, it should redirect users to a way to fix their configuration.

It is also possible to run the server in simulation mode. See Developer guidelines below.

Settings

The microscope is initially configured by a LabThings config file. This specifies two important things:

• The Python classes (and initialisation arguments) to use for each Thing. This sets the type of camera and stage, and enables/disables additional functionality like scanning and autofocus.
• The location of the settings folder, where each Thing can store its settings.

By default, this configuration file should be read from /var/openflexure/settings/ofm_config.json when the microscope is run as a service. If it is run at the command line you should specify the configuration using the -c command line flag. This configuration file does not change often, and usually only needs to be updated when you change the physical hardware. It may be that this file should be made read-only, particularly in microscopes deployed for e.g. medical applications.

The settings folder is, by default, /var/openflexure/settings/ on the SD card, or ./settings/ if run elsewhere. It can be changed in the configuration file. This holds every other persistent setting. Camera settings, calibration data, default capture settings, stream resolution and so on. There is one folder per Thing, each with their own file. The settings files can change very regularly, and if you need to reset your settings, it's usually these files that you should remove or reset. If you delete one settings file this should reset the corresponding Thing, you don't have to delete the whole folder.

Developer guidelines

Installation and set up

To set up a development environment you will need Python 3.11 and the static files for the web application.

Installation and set up on a Raspberry Pi

The OpenFlexure Raspberry Pi OS image comes with Python 3.11 already installed. We do not recommend trying to develop on the standard Raspberry Pi OS image.

• To activate the microscope virtual environment run ofm activate
• Navigate to the Openflexure repository with cd /var/openflexure/application/openflexure-microscope-server

The Pi should already come with the static files for the web application.

Installation and set up on other platforms

You should install Python 3.11. If you have a different version of python we recommend using UV to set up a Python 3.11 virtual environment.

You can check your Python version by running py --version or python --version in any terminal. Your Python version should be >= 3.11.0.

• Clone the source code: git clone https://gitlab.com/openflexure/openflexure-microscope-server.git
• Enter the directory cd openflexure-microscope-server
• Create the virtual environment, for example with uv venv --python 3.11 (or py -m venv .venv if not using uv)
• Activate your virtual environment with source .venv/bin/activate (on Linux) or .venv\Scripts\activate.bat (on Windows CMD) or .venv\Scripts\activate (on Windows Powershell)

Note: If you activate the venv in a CMD terminal in VSCode on Windows, the venv will not visually show as activated until you open a new powershell window.

• Install the application uv pip install -e .[dev] (or pip install -e .[dev] if you are not using UV)
• Run python pull_webapp.py to get the latest static files for the web application.

Full video walkthroughs of the software installation process are available below:

• Windows Walkthrough
• Linux Walkthrough

If you are using Windows and you cannot activate your virtual environment from powershell, you probably need to change the execution policy. The official Microsoft docs have the right command in example #1: https://learn.microsoft.com/en-us/powershell/module/microsoft.powershell.security/set-executionpolicy?view=powershell-7.5#example-1-set-an-execution-policy.

Running the server

There are two types of server available to run:

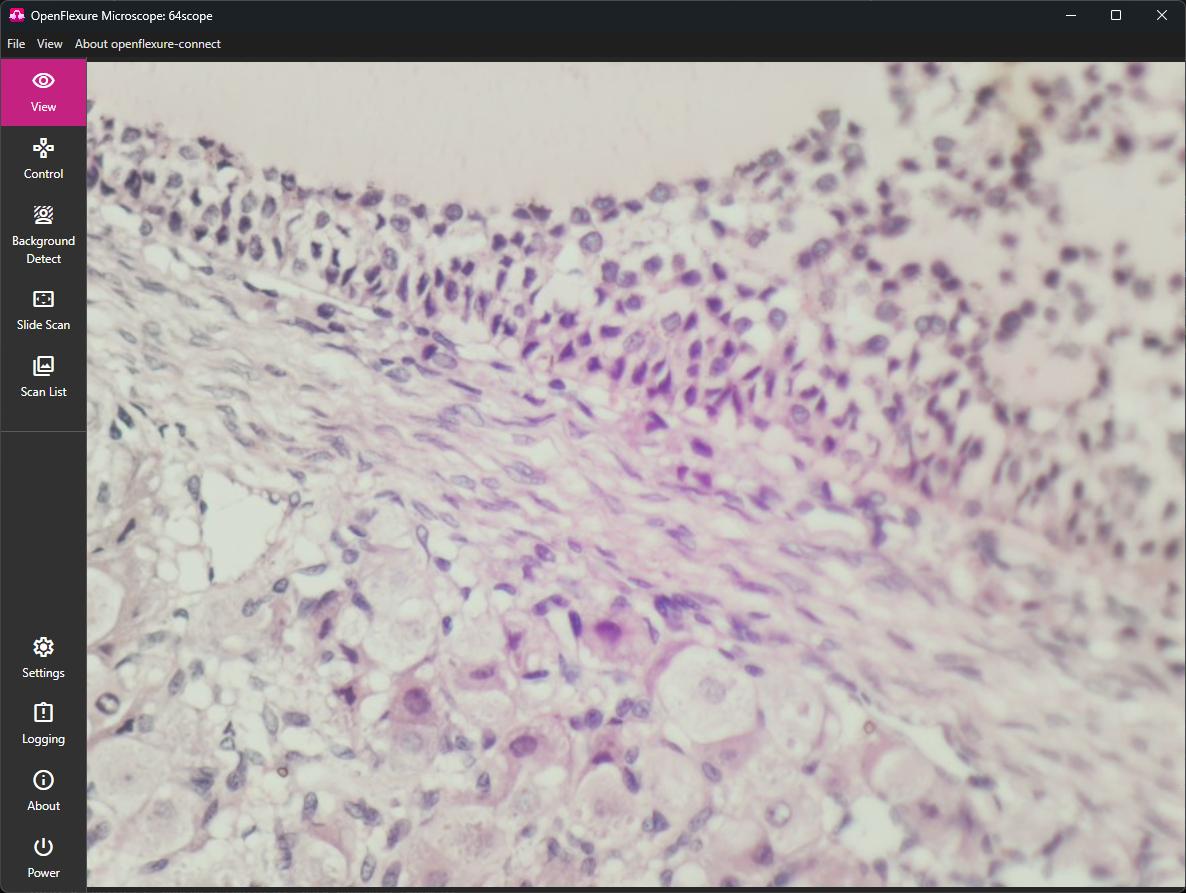

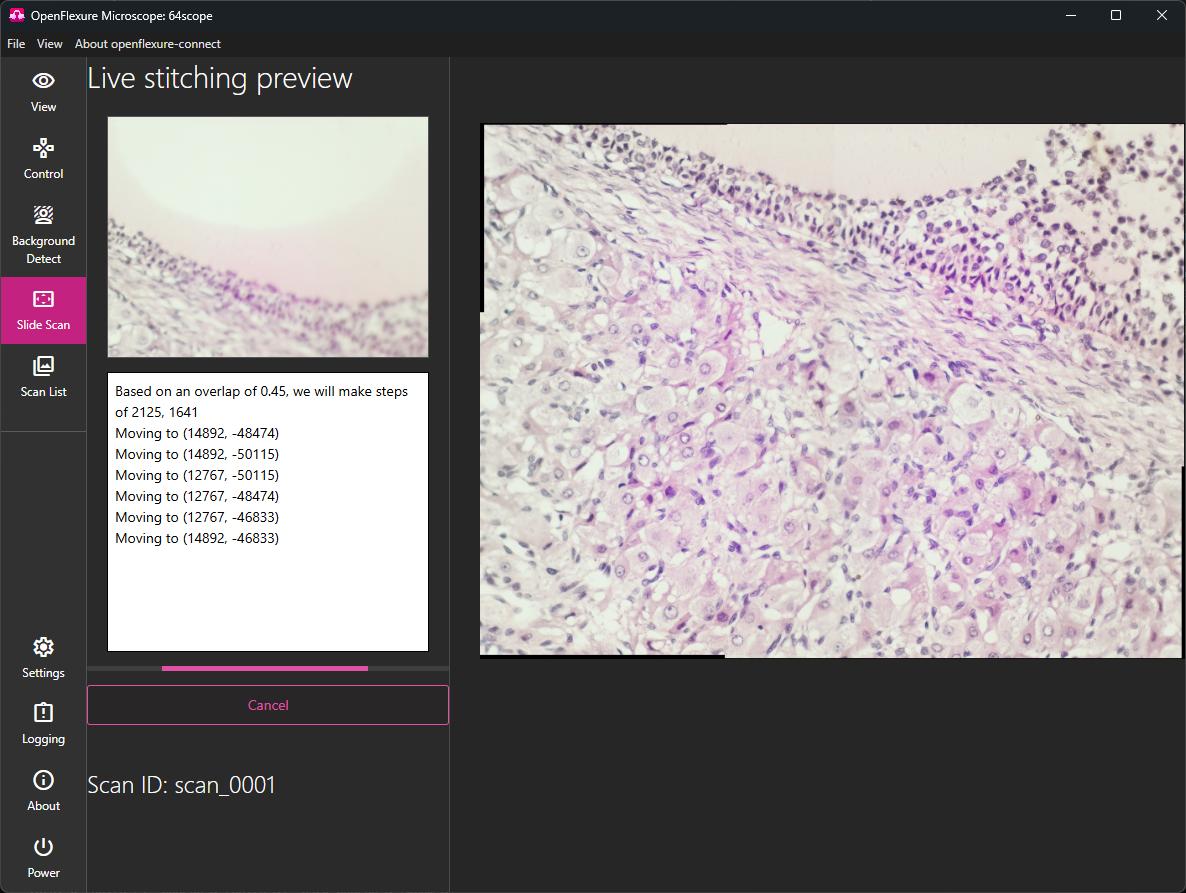

• A live OpenFlexure Microscope Server, that runs on a Raspberry Pi within your OpenFlexure Microscope. This server processes real images from the microscope's camera.

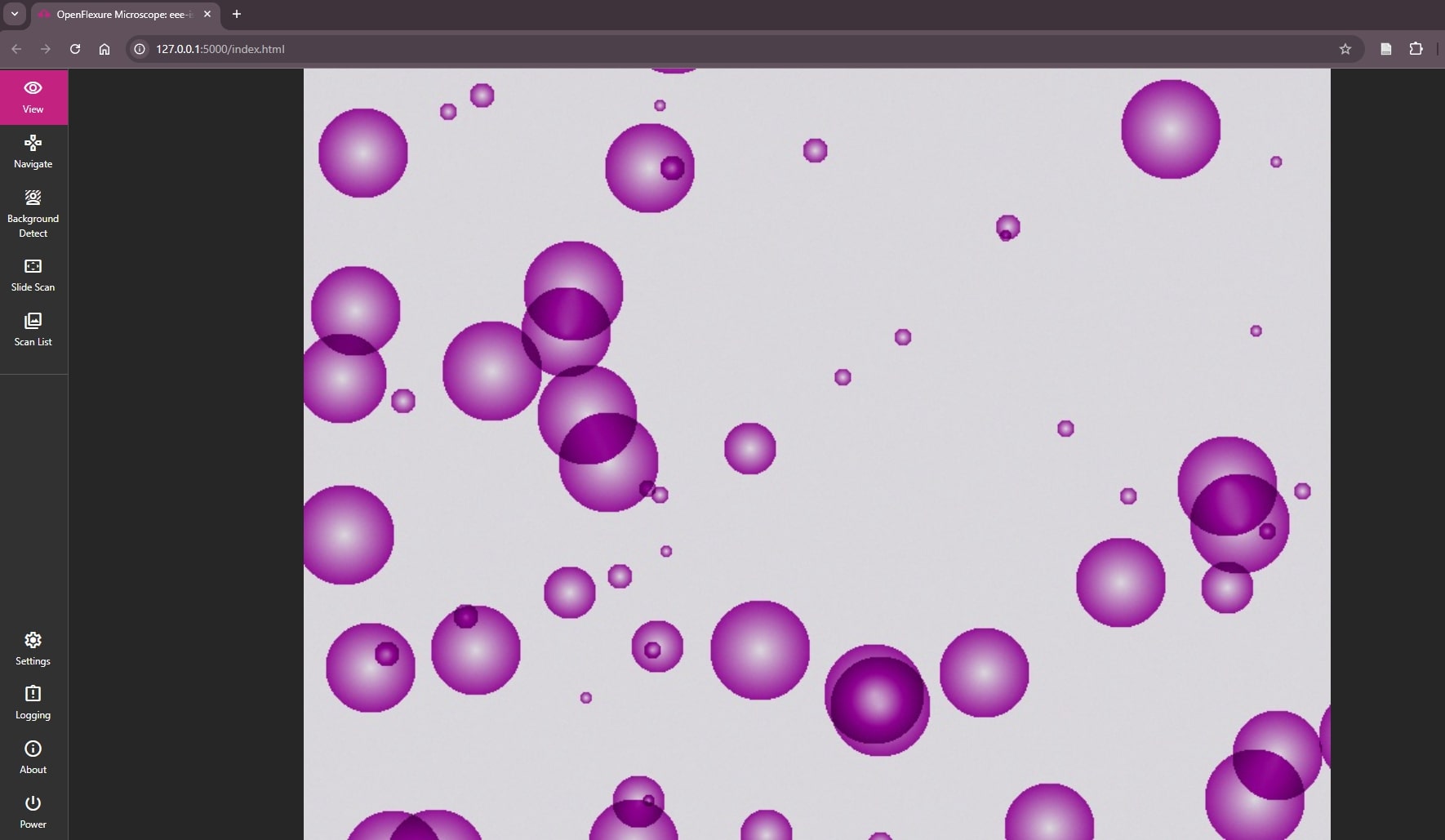

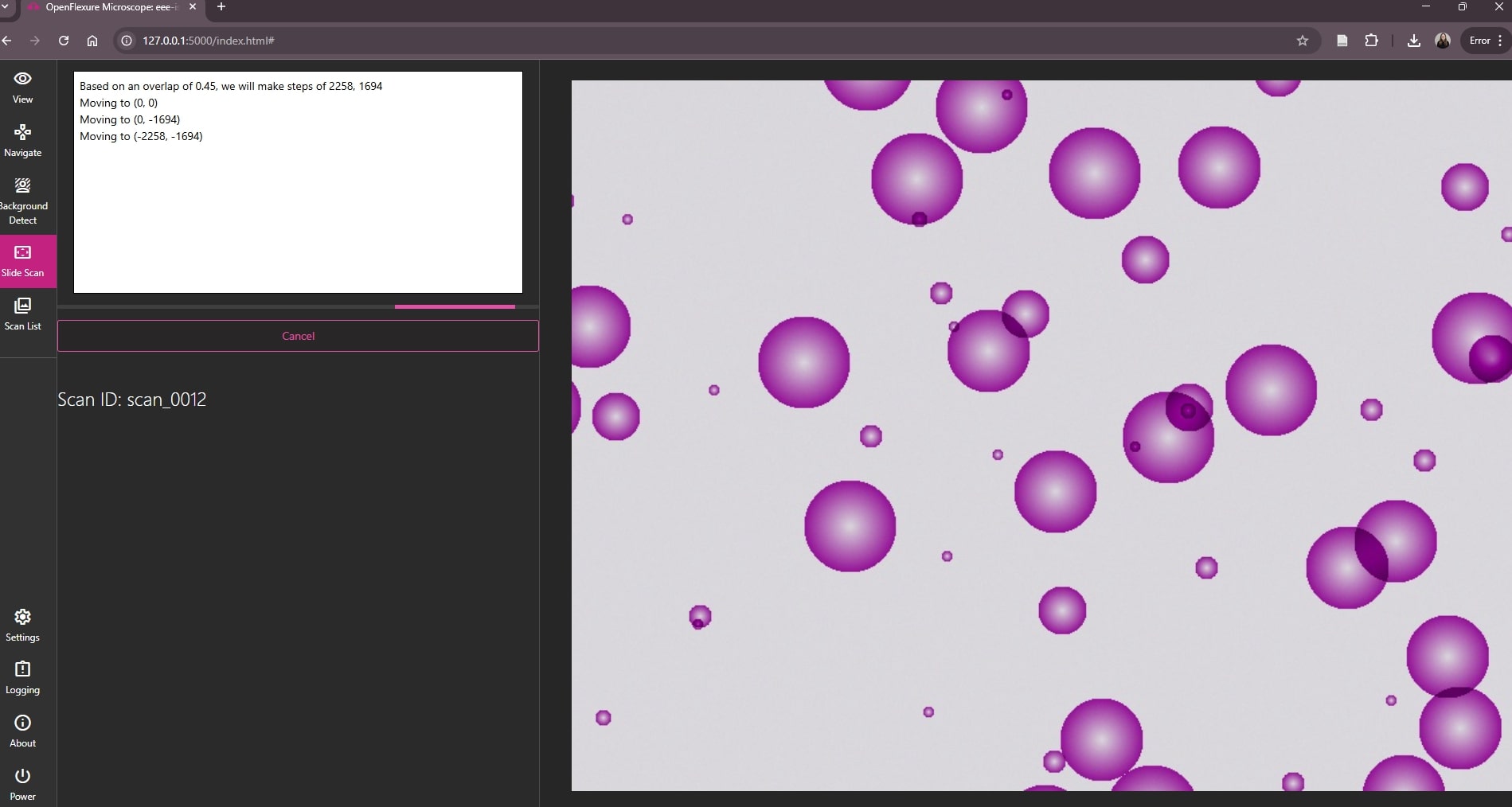

• A Simulation Server, which replicates the software functionality of the live server, but instead runs on your computer. Instead of receiving a live feed from a camera, the server 'scans' simulated data from a simulated camera.

Running the server on a Raspberry Pi

You can manage the server with the ofm command, using ofm start, ofm stop, and ofm restart to do the respective actions. Often, stopping the server and running it manually will make errors easier to spot. To do this, run:

ofm stop
ofm activate
cd /var/openflexure
sudo -u openflexure-ws openflexure-microscope-server --fallback -c microscope_configuration.json --host 0.0.0.0 --port 5000

Running the simulation server on other platforms

To start the simulation server:

• Ensure all steps of the installation for your platform of choice are complete.
• Activate the virtual environment that was set up during installation
• Run the following command:

openflexure-microscope-server --fallback -c ./ofm_config_simulation.json

• Open the address displayed in the terminal in any browser.
• To close the simulation server, return to the terminal and press ctrl + c.

Note: If you are using Windows, we advise running this command in PowerShell. If it doesn't work this, might be a permission issue on managed machines, in which case try executing the command in a CMD terminal.

Note: If you receive an error saying that port 5000 is already in use, you can specify a different port to run the simulation on using --port:

openflexure-microscope-server --fallback --port 8081 -c ./ofm_config_simulation.json

A full video walkthrough of running the simulation server is available on our YouTube Channel.

You can find more information on using the simulation server in the Simulation Guide.

General development overview

Please first read our project contributions guide

• We recommend all development is done on a branch.
• If you are editing the web app, please see our see the README in the webapp directory.
• If you want to try a branch with webapp changes (that are already pushed to GitLab), but don't want to compile the javascript, then run python pull_webapp.py -b <branch_name> to get the artifacts from the GitLab CI.

For development on a Raspberry Pi we recommend VSCode Remote session from another computer. This allows you to use your usual developer environment to write code, but everything runs on the Raspberry Pi with real hardware. Note that the repository is cloned by default over https, so you will probably need to change the "remote" URL to your fork of the repository, or to SSH, before you're able to push changes.

Adding functionality

The microscope comprises a number of Thing instances, which provide actions and properties to implement hardware control and software features. These may be imported from any Python module, using ofm_config.json. See the LabThings-FastAPI documentation for how to create a Thing.

Currently, the camera and stage classes are provided by external libraries, labthings-picamera2 and labthings-sangaboard. Replacing these is the easiest way to use alternative hardware: interfaces are defined in openflexure_microscope_server.things.camera and openflexure_microscope_server.things.stage respectively.

Python: Formatting, linting, and tests

All of the commands below assume that you are running in the OFM virtual environment, i.e. you have run ofm activate on an OpenFlexure SD card, or source .venv/bin/activate on Linux, or .venv/Scripts/activateon Windows Powershell, or .venv\Scripts\activate.bat on Windows CMD.

Before committing you should lint and auto-format your code:

• To lint run ruff check
• To auto-format the Python code run ruff format
• To auto-format the Javascript code, run
  • cd webapp
  • npm run lint

Before merging please auto-format your code and also run the quality checks (linting, static analysis, and unit tests)

• All commands above
• pytest

We use several code analysis and formatting libraries in this project. Our CI will check each of these automatically, so ensuring they pass locally will save you time. Currently ruff is used for linting/formatting and pytest for unit tests. mypy will be enabled once the codebase is ready.

Python environment, build, and dependencies

As of v3 we specify dependencies in pyproject.toml. These are not currently frozen due to difficulties matching versions on different platforms. On Raspberry Pi, it's best to specify --only-binary=:all: to ensure libraries like numpy and scipy are not compiled from source (which takes many hours, and/or fails). Pinning dependencies with requirements.txt and/or requirements.in may happen in the future.
