STM Vibration Isolation #42

New issue
Open
opened 2025-05-23 23:58:45 +00:00 by rahix · 2 comments
rahix commented 2025-05-23 23:58:45 +00:00
Owner
Copy link

We need to build a vibration isolated mount for the STM. We plan to use a spring-damper with the spring element being very long tension springs and the damper being magnets functioning as an eddy current brake (Wirbelstrombremse).

The Vibration Isolation Frame is currently developed over in https://git.fa-fo.de/fafo/k8ik-stm.

Working state CAD:

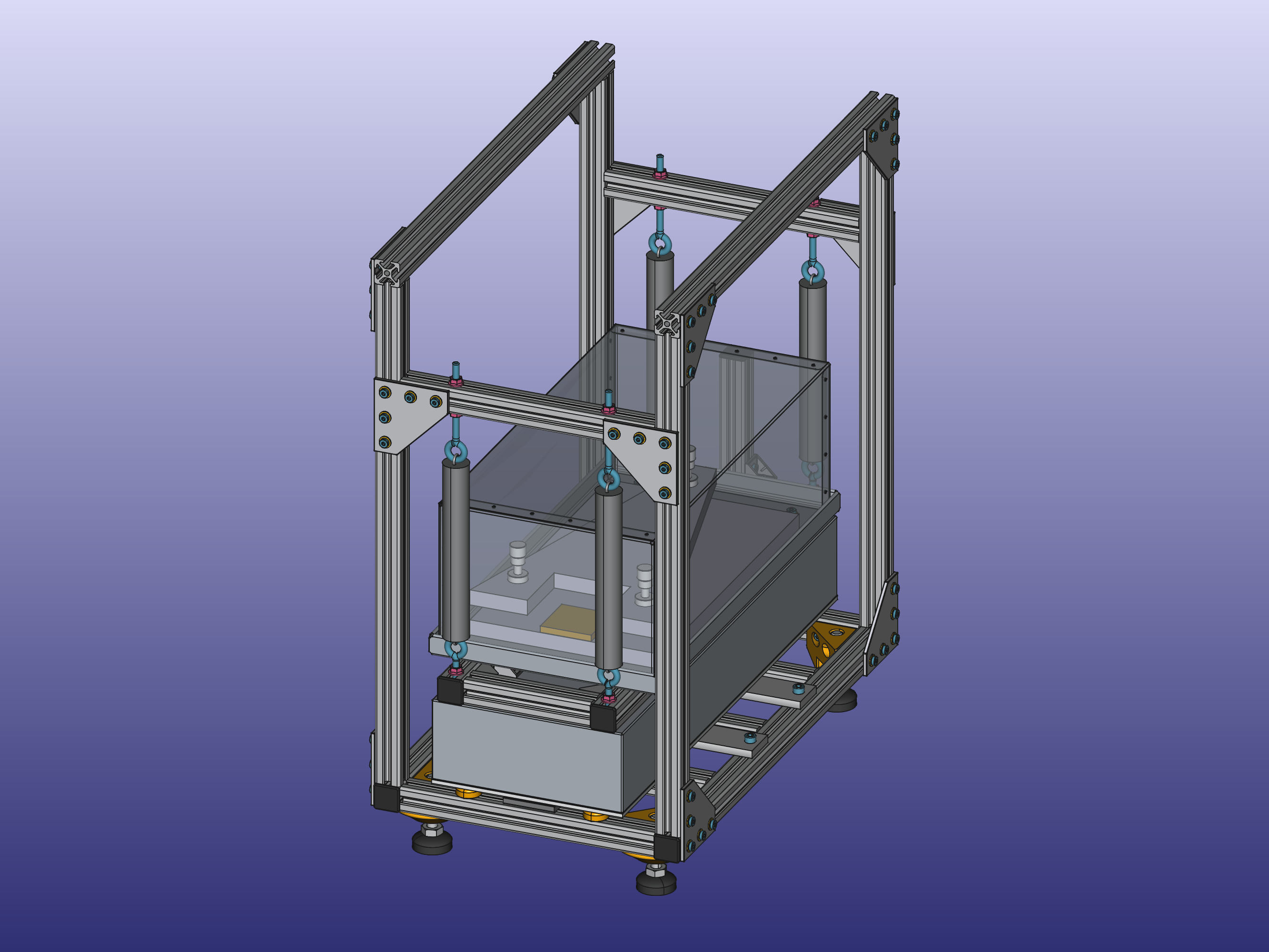

Screenshot of current CAD

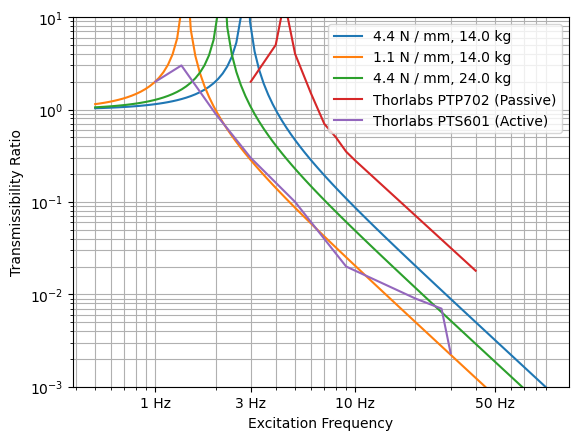

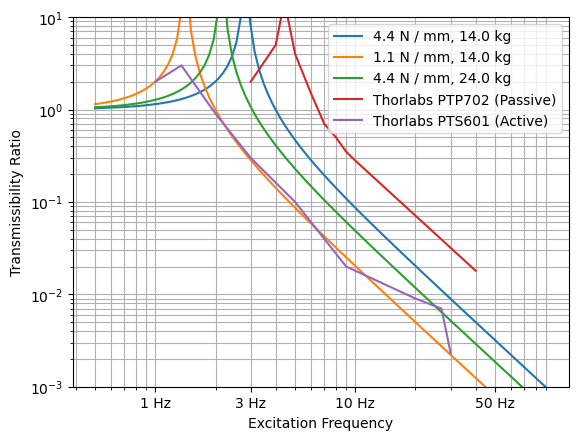

The calculated performance of this vibration isolation setup is the blue line in the following diagram. There are some real-world optical table isolation curves plotted alongside it for comparison:


We need to build a vibration isolated mount for the STM. We plan to use a spring-damper with the spring element being very long tension springs and the damper being magnets functioning as an eddy current brake (Wirbelstrombremse). The Vibration Isolation Frame is currently developed over in <https://git.fa-fo.de/fafo/k8ik-stm>. Working state CAD: ![Screenshot of current CAD](https://git.fa-fo.de/fafo/k8ik-stm/media/branch/main/CAD-Screenshot.png) The calculated performance of this vibration isolation setup is the blue line in the following diagram. There are some real-world optical table isolation curves plotted alongside it for comparison: ![image](/attachments/330051d0-81b7-447e-aee3-e4444c90d37a)
