# Setup Guide

This guide walks you through the setup of your new **Open Micro-Manipulator** device.

## Checklist for New Devices

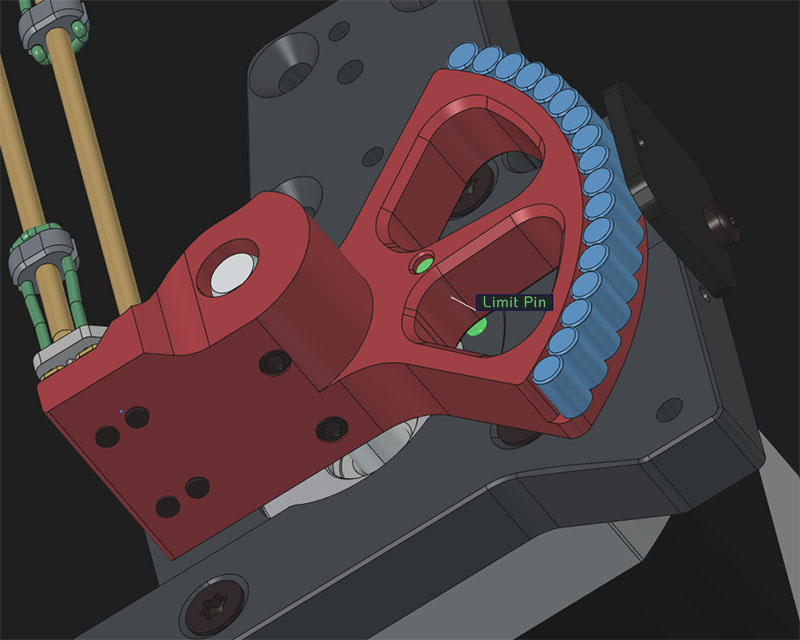

1. **Was the mechanical limit pin added to the rotor?**
   This pin is required for proper homing of the device.

    <div style="display: flex;">
        <img src="mechanical_limit_pin.jpg" alt="Mechanical Limit Pin" width="30%">
    </div>


2. **Are the screws that secure the rotor to the motor shaft installed?**
   If the rotor is not firmly attached, it may slip imperceptibly during homing or other movements, leading to problems during calibration and homing.

3. **Is the homing direction correct?**
   During the homing command (`G28`), the end effector should move toward the base.
   If it moves in the opposite direction, rewire the motor to reverse its direction.


## Calibration and Checking the Encoders

You can use the calibration plotter to check if your encoders are working as expected.

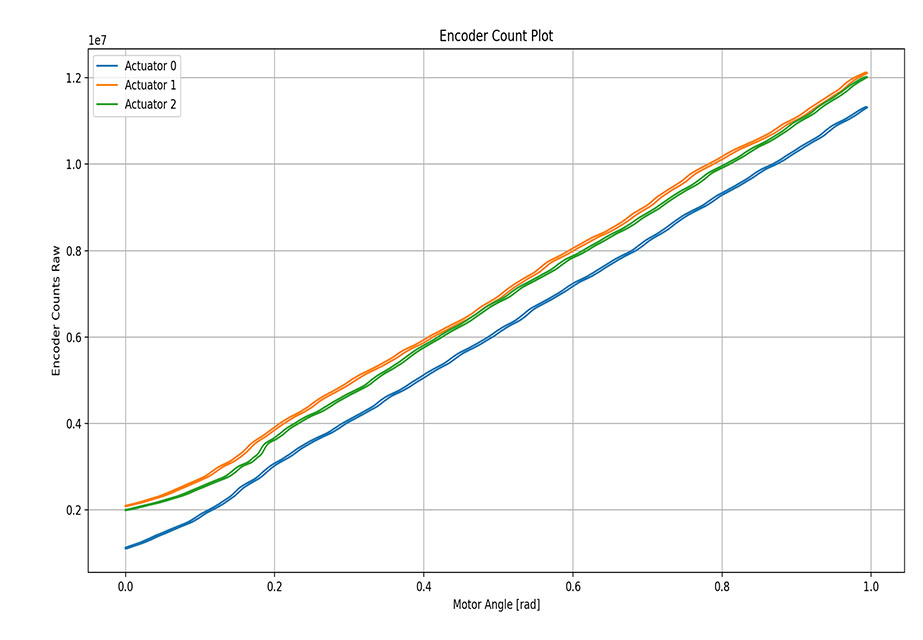

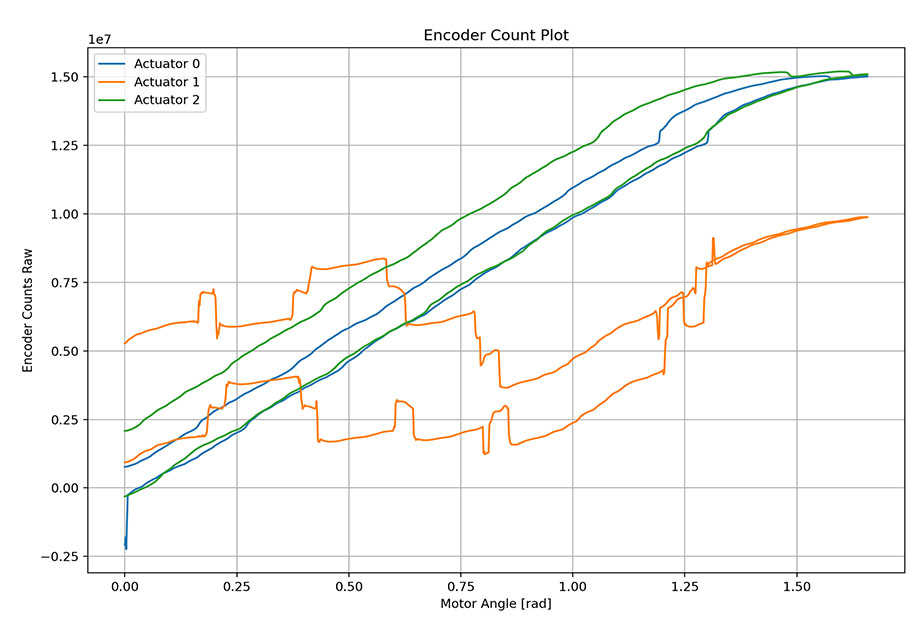

On the left you see a good calibration on the right a bad calibration.

| <img src="good_calibration.jpg"> | <img src="bad_calibration.jpg"> |
:--:|:--:
| **Good calibration** | **Bad calibration** |

THIS DOCUMENT IS UNFINISHEd AND WORK IN PROGRESs...
